图像处理20210523

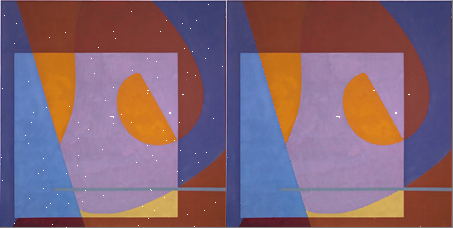

效果

可以看到，大部分白色噪声都被去除，只有部分连块的“较大”噪声没有去除。不过我们暂时可以不用管它，因为只需要多次利用该算法（如果遇到仍无法解决的情况，那么再附加“缩小二分之一”图像的检测就可以了）

考虑该算法是否合理

这里考虑的条件仅为是否会对直线检测造成影响（直线检测算法暂时利用opencv中的canny算子）

下面是降噪前和降噪后的样例：

降噪前

降噪后

旧算法降噪后

首先新算法降噪前后，对canny检测几乎没有影响，甚至还有一定程度的提升

但旧的算法会使边缘变得不平滑，这体现出了新算法的优势之一

噪声条件更加恶劣

噪声值也为随机时

可以看出效果不错

代码

# python3.8
# utf-8
"""
1.找出噪声点：
    新划分方法
    标记次数
2.修改
    找最接近的未标记过的点
"""
import cv2 as cv
import numpy as np

threshold = 1


class PixelChannel:
    def __init__(self, channel, noise, row, col):
        self.noise = noise
        self.channel = channel
        self.row = row
        self.col = col


class Part:
    def __init__(self, x, y, area):
        self.x = x
        self.y = y
        self.area = area


# 建立像素通道类
def create_pixel_channel(img_channel):
    (row, col) = img_channel.shape
    result = PixelChannel(img_channel, noise_check(img_channel), row, col)
    return result


# 一维数组映射到二维
def _1d_2_2d(x):
    if x == 0:
        return 0, 0
    elif x == 1:
        return 0, 1
    elif x == 2:
        return 0, 2
    elif x == 3:
        return 1, 2
    elif x == 4:
        return 2, 2
    elif x == 5:
        return 2, 1
    elif x == 6:
        return 2, 0
    elif x == 7:
        return 1, 0


def division1(_8area):
    result = [0] * 8
    p1 = [_8area[0][0], _8area[0][1], _8area[0][2], _8area[1][2], _8area[2][2], _8area[2][1], _8area[2][0],
          _8area[1][0]]
    p = sorted(p1)
    q = [abs(int(p[0]) - int(p[1])), abs(int(p[1]) - int(p[2])), abs(int(p[2]) - int(p[3])), abs(int(p[3]) - int(p[4])),
         abs(int(p[4]) - int(p[5])), abs(int(p[5]) - int(p[6])), abs(int(p[6]) - int(p[7]))]
    # 判断区分度
    if max(q) < 10:
        return result, False
    max_index = q.index(max(q))
    for i in range(0, max_index + 1):
        result[p1.index(p[i])] = 1
    for i in range(8):
        if result[i] != 1:
            result[i] = 2

    return result, True


# 去除del_num号元素，del_num:0~7
def division2(_8area, del_num):
    r = [0] * 8
    p1 = [_8area[0][0], _8area[0][1], _8area[0][2], _8area[1][2], _8area[2][2], _8area[2][1], _8area[2][0],
          _8area[1][0]]
    p2 = []
    for i in range(8):
        if i == del_num:
            continue
        p2.append(p1[i])
    result = [0] * 8

    p = sorted(p2)
    q = [abs(int(p[0]) - int(p[1])), abs(int(p[1]) - int(p[2])), abs(int(p[2]) - int(p[3])), abs(int(p[3]) - int(p[4])),
         abs(int(p[4]) - int(p[5])), abs(int(p[5]) - int(p[6]))]
    # 判断区分度
    if max(q) < 10:
        return result, False
    max_index = q.index(max(q))
    for i in range(0, max_index + 1):
        result[p1.index(p[i])] = 1
    for i in range(8):
        if result[i] != 1:
            result[i] = 2
    result[del_num] = 0
    return result, True


def noise_check(img_channel):
    (row, col) = img_channel.shape
    result = [[0] * col for i in range(row)]
    for i in range(1, row - 1):
        for j in range(1, col - 1):
            # _8_area = type(img_channel)
            _8_area = [[0] * 3 for i in range(3)]
            _8_area[0][0] = img_channel[i - 1][j - 1]
            _8_area[0][1] = img_channel[i - 1][j]
            _8_area[0][2] = img_channel[i - 1][j + 1]
            _8_area[1][2] = img_channel[i][j + 1]
            _8_area[2][2] = img_channel[i + 1][j + 1]
            _8_area[2][1] = img_channel[i + 1][j]
            _8_area[2][0] = img_channel[i + 1][j - 1]
            _8_area[1][0] = img_channel[i][j - 1]
            # 不考虑位置
            part1, flag1 = division1(_8_area)
            # 如果在不去除点的情况下，不需要划分，那么就跳过
            if not flag1:
                continue

            part2 = []
            for k in range(7):
                cnt = 0
                part2, flag2 = division2(_8_area, k)
                if not flag2:
                    if k == 0 or k == 7:
                        cnt += 1
                    else:
                        continue
                # 比较

                for m in range(8):
                    if part2[m] != 0 and part1[m] != part2[m]:
                        cnt += 1
                if cnt >= 1:
                    x, y = _1d_2_2d(k)
                    result[i - 1 + x][j - 1 + y] += 1
            # 处理特殊值
            # sx, sy = special_check(_8_area)
            # if sx != -1:
            #     result[i - 1 + sx][j - 1 + sy] += 1

    return result


# 不考虑缩小二分之一图像
def mark(pixel_channel):
    for i in range(pixel_channel.row):
        for j in range(pixel_channel.col):
            if pixel_channel.noise[i][j] >= threshold:
                pixel_channel.channel[i][j] = find_best(pixel_channel, i, j)
    return pixel_channel


# 找到最合适的值
def find_best(pixel_channel, x, y):
    p = pixel_channel.channel[x][y]
    # 建立领域列表
    neighborhood = []
    if pixel_channel.row > x - 1 >= 0 and pixel_channel.col > y - 1 >= 0 and pixel_channel.noise[x - 1][y - 1] < threshold:
        neighborhood.append(pixel_channel.channel[x - 1][y - 1])
    if pixel_channel.row > x - 1 >= 0 and pixel_channel.col > y >= 0 and pixel_channel.noise[x - 1][y] < threshold:
        neighborhood.append(pixel_channel.channel[x - 1][y])
    if pixel_channel.row > x - 1 >= 0 and pixel_channel.col > y + 1 >= 0 and pixel_channel.noise[x - 1][y + 1] < threshold:
        neighborhood.append(pixel_channel.channel[x - 1][y + 1])
    if pixel_channel.row > x >= 0 and pixel_channel.col > y + 1 >= 0 and pixel_channel.noise[x][y + 1] < threshold:
        neighborhood.append(pixel_channel.channel[x][y + 1])
    if pixel_channel.row > x + 1 >= 0 and pixel_channel.col > y + 1 >= 0 and pixel_channel.noise[x + 1][y + 1] < threshold:
        neighborhood.append(pixel_channel.channel[x + 1][y + 1])
    if pixel_channel.row > x + 1 >= 0 and pixel_channel.col > y >= 0 and pixel_channel.noise[x + 1][y] < threshold:
        neighborhood.append(pixel_channel.channel[x + 1][y])
    if pixel_channel.row > x + 1 >= 0 and pixel_channel.col > y - 1 >= 0 and pixel_channel.noise[x + 1][y - 1] < threshold:
        neighborhood.append(pixel_channel.channel[x + 1][y - 1])
    if pixel_channel.row > x >= 0 and pixel_channel.col > y - 1 >= 0 and pixel_channel.noise[x][y - 1] < threshold:
        neighborhood.append(pixel_channel.channel[x][y - 1])

    # 搜索与给定点最接近的非噪声点
    # 建立差值列表
    d = []
    for i in range(len(neighborhood)):
        d.append(abs(int(neighborhood[i]) - int(p)))
    if len(d) == 0:
        return p
    min_index = d.index(min(d))

    return neighborhood[min_index]


# 考虑缩小二分之一图像
def repair(pixel_channel, half_channel):
    # 左上角
    for i in range(half_channel[0].row):
        for j in range(half_channel[0].col):
            if half_channel[0].noise[i][j] >= threshold:
                pixel_channel.noise[i * 2][j * 2] += half_channel[0].noise[i][j]

    # 右上角
    for i in range(half_channel[1].row):
        for j in range(half_channel[1].col):
            if half_channel[1].noise[i][j] >= threshold:
                pixel_channel.noise[i * 2][j * 2 + 1] += half_channel[1].noise[i][j]

    # 左下角
    for i in range(half_channel[2].row):
        for j in range(half_channel[2].col):
            if half_channel[2].noise[i][j] >= threshold:
                pixel_channel.noise[i * 2 + 1][j * 2] += half_channel[2].noise[i][j]

    # 右下角
    for i in range(half_channel[3].row):
        for j in range(half_channel[3].col):
            if half_channel[3].noise[i][j] >= threshold:
                pixel_channel.noise[i * 2 + 1][j * 2 + 1] += half_channel[3].noise[i][j]

    for i in range(pixel_channel.row):
        for j in range(pixel_channel.col):
            if pixel_channel.noise[i][j] >= threshold:
                pixel_channel.channel[i][j] = find_best(pixel_channel, i, j)

    return pixel_channel


def main():
    # 图像地址
    img_address = "img_noise.png"
    # 以BGR方式读入图像
    img = cv.imread(img_address, 1)
    cv.imshow("img_noise.png", img)
    # 通道分离
    channel_b, channel_g, channel_r = cv.split(img)
    # 建立像素通道类
    b = create_pixel_channel(channel_b)
    g = create_pixel_channel(channel_g)
    r = create_pixel_channel(channel_r)
    # 缩小二分之一
    # half_b = [half_1(b), half_2(b), half_3(b), half_4(b)]
    # half_g = [half_1(g), half_2(g), half_3(g), half_4(g)]
    # half_r = [half_1(r), half_2(r), half_3(r), half_4(r)]

    fp = open('b.noise.csv', 'w')
    for i in range(b.row):
        for j in range(b.col):
            print(b.noise[i][j], file=fp, end='')
            print(",", file=fp, end='')
        print("", file=fp)

    fp = open('b.pixel.csv', 'w')
    for i in range(b.row):
        for j in range(b.col):
            print(b.channel[i][j], file=fp, end='')
            print(",", file=fp, end='')
        print("", file=fp)

    # 不考虑二分之一图像
    new_img = cv.merge((mark(b).channel, mark(g).channel, mark(r).channel))

    # 考虑二分之一图像
    # new_img = cv.merge((repair(b, half_b).channel, repair(g, half_g).channel, repair(r, half_r).channel))

    cv.imwrite("denoised_img.png", new_img)
    cv.imshow("denoised_img.png", new_img)
    cv.waitKey()
    cv.destroyAllWindows()


if __name__ == '__main__':
    main()
