Deep image prior降噪部分的实现

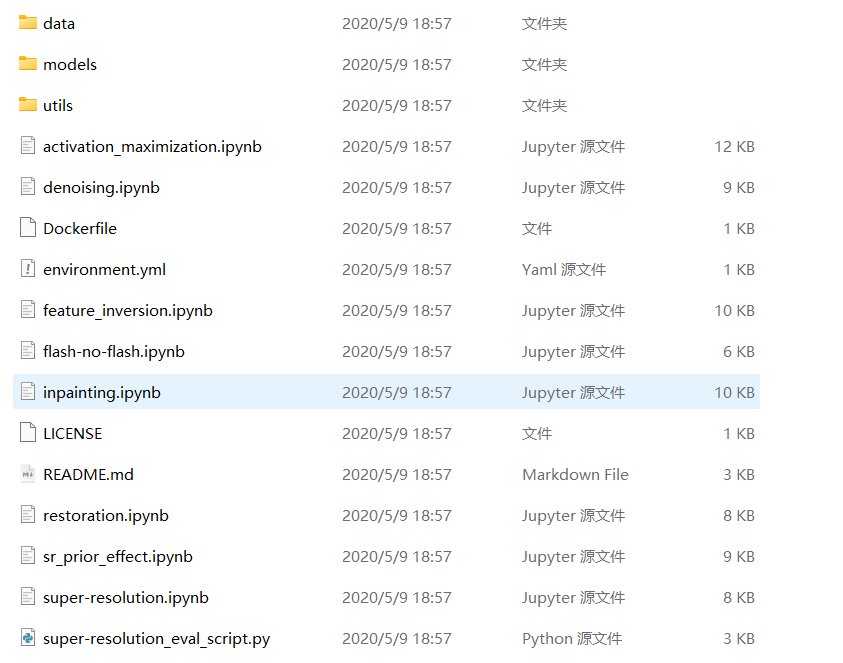

项目源码

降噪部分的修改与运行

导入所需库

from __future__ import print_function
import matplotlib.pyplot as plt
%matplotlib inline

import os
#os.environ['CUDA_VISIBLE_DEVICES'] = '3'

import numpy as np
from models import *

import torch
import torch.optim

# from skimage.measure import compare_psnr
from skimage.metrics import peak_signal_noise_ratio as compare_psnr
from utils.denoising_utils import *

torch.backends.cudnn.enabled = True
torch.backends.cudnn.benchmark =True
dtype = torch.cuda.FloatTensor

imsize =-1
PLOT = True
sigma = 25
sigma_ = sigma/255.

在上述代码中，第十四行

1	from skimage.measure import compare_psnr

已经跟不上版本，不可用，所以我替换成下面的语句

1	from skimage.metrics import peak_signal_noise_ratio as compare_psnr

设置参数

INPUT = 'noise' # 'meshgrid'
pad = 'reflection'
OPT_OVER = 'net' # 'net,input'

reg_noise_std = 1./30. # set to 1./20. for sigma=50
LR = 0.01

OPTIMIZER='adam' # 'LBFGS'
show_every = 100
exp_weight=0.99

if fname == 'data/denoising/snail.jpg':
    num_iter = 2400
    input_depth = 3
    figsize = 5

    net = skip(
                input_depth, 3,
                num_channels_down = [8, 16, 32, 64, 128],
                num_channels_up   = [8, 16, 32, 64, 128],
                num_channels_skip = [0, 0, 0, 4, 4],
                upsample_mode='bilinear',
                need_sigmoid=True, need_bias=True, pad=pad, act_fun='LeakyReLU')

    net = net.type(dtype)

elif fname == 'data/denoising/F16_GT.png':
    num_iter = 3000
    input_depth = 32
    figsize = 4


    net = get_net(input_depth, 'skip', pad,
                  skip_n33d=128,
                  skip_n33u=128,
                  skip_n11=4,
                  num_scales=5,
                  upsample_mode='bilinear').type(dtype)

else:
    assert False

net_input = get_noise(input_depth, INPUT, (img_pil.size[1], img_pil.size[0])).type(dtype).detach()

# Compute number of parameters
s  = sum([np.prod(list(p.size())) for p in net.parameters()]);
print ('Number of params: %d' % s)

# Loss
mse = torch.nn.MSELoss().type(dtype)

img_noisy_torch = np_to_torch(img_noisy_np).type(dtype)

该部分会对测试图片进行噪声污染

但是，该部分仅针对“飞机”和“蜗牛”图片，普适性仍待考究

迭代优化

net_input_saved = net_input.detach().clone()
noise = net_input.detach().clone()
out_avg = None
last_net = None
psrn_noisy_last = 0

i = 0
def closure():

    global i, out_avg, psrn_noisy_last, last_net, net_input

    if reg_noise_std > 0:
        net_input = net_input_saved + (noise.normal_() * reg_noise_std)

    out = net(net_input)

    # Smoothing
    if out_avg is None:
        out_avg = out.detach()
    else:
        out_avg = out_avg * exp_weight + out.detach() * (1 - exp_weight)

    total_loss = mse(out, img_noisy_torch)
    total_loss.backward()


    psrn_noisy = compare_psnr(img_noisy_np, out.detach().cpu().numpy()[0])
    psrn_gt    = compare_psnr(img_np, out.detach().cpu().numpy()[0])
    psrn_gt_sm = compare_psnr(img_np, out_avg.detach().cpu().numpy()[0])

    # Note that we do not have GT for the "snail" example
    # So 'PSRN_gt', 'PSNR_gt_sm' make no sense
    print ('Iteration %05d    Loss %f   PSNR_noisy: %f   PSRN_gt: %f PSNR_gt_sm: %f' % (i, total_loss.item(), psrn_noisy, psrn_gt, psrn_gt_sm), '\r', end='')

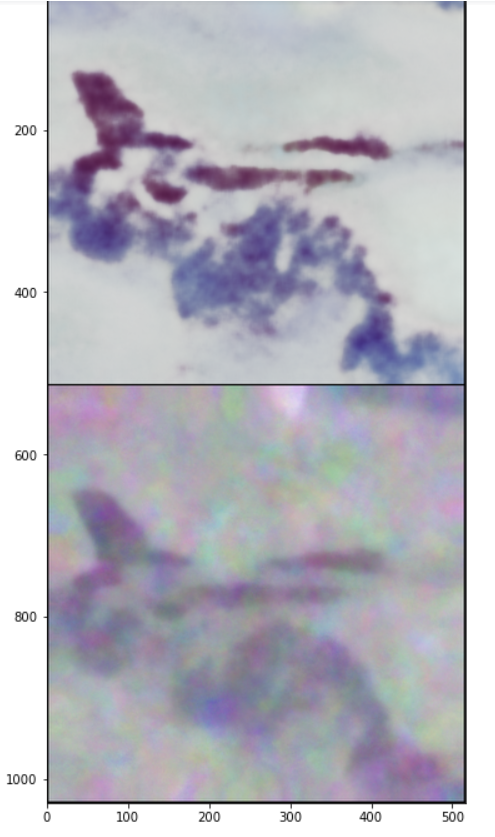

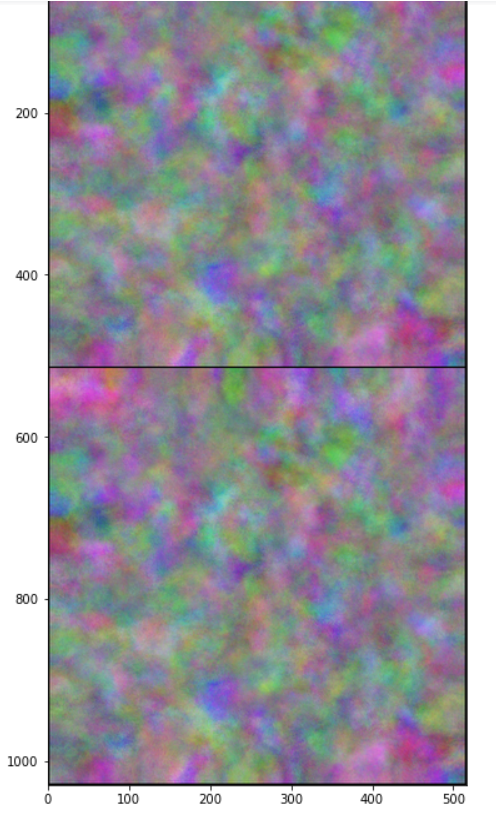

    if  PLOT and i % show_every == 0:
        out_np = torch_to_np(out)
        plot_image_grid([np.clip(out_np, 0, 1),
                         np.clip(torch_to_np(out_avg), 0, 1)], factor=figsize, nrow=1)



    # Backtracking
    if i % show_every:
        if psrn_noisy - psrn_noisy_last < -5:
            print('Falling back to previous checkpoint.')

            for new_param, net_param in zip(last_net, net.parameters()):
                net_param.data.copy_(new_param.cuda())

            return total_loss*0
        else:
            last_net = [x.detach().cpu() for x in net.parameters()]
            psrn_noisy_last = psrn_noisy

    i += 1

    return total_loss

p = get_params(OPT_OVER, net, net_input)
optimize(OPTIMIZER, p, closure, LR, num_iter)
